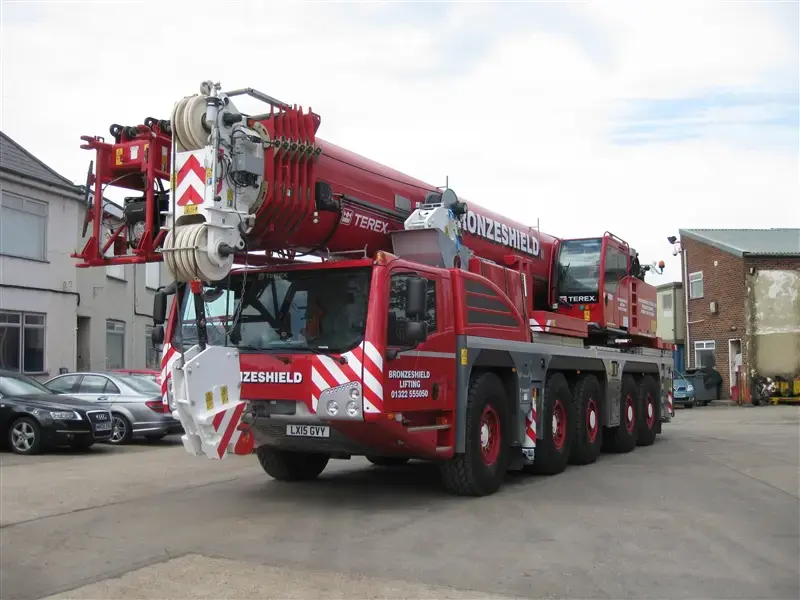

Terex-Demag Explorer 5800
A 220 tonne all terrain crane with a main boom extending to 70 metres, rated at its full 220 tonnes at three metres radius. The first of the heavy lift machines in the fleet, for major steel erection and plant work.
Key figures
Full specification
| Class | All Terrain crane - heavy lift |
|---|---|
| Maximum lifting capacity | 220 t |
| Main boom | 70 m |
| Maximum lifting capacity at 3 m radius | 220 t |
| Counterweight | 70.2 t maximum |
| Swing-away jib | 21 m, offsettable |
| Maximum radius | 66 m on the main boom, 78 m with the 21 m jib |
| Outriggers | Variable configurations, laser controlled |
| Carrier | 5 axles, all steered |
| Availability | 24 hours a day, 365 days a year |
Manufacturer configuration figures. Exact capability for your lift - radius, height, ground bearing and counterweight - is confirmed against the load charts by our appointed persons.
Built for the job
- 70 m main boom, five-section single-cylinder telescoping
- 21 m offsettable wrap round fly jib
- Up to 70.2 t of counterweight
- 66 m maximum radius on the main boom, 78 m with the jib
- Five-axle carrier, all axles steered
Main boom length, to scale. Every lift is planned to the manufacturer load charts by our appointed persons.
Contract lift or hired & managed
Contract Lift
- Full lift planning by our expert appointed persons
- Crane, operator, supervision and slinger provided
- Method statements and risk assessments included
- Insurance for the lift carried by Bronzeshield
- Ideal when you want one accountable partner
Hired & Managed
- The 220 tonner with our qualified operator
- Working under your appointed person and lift plan
- Flexible day-rate hire
- 24 hours a day, 365 days a year availability
- Ideal for experienced contractors with in-house planning
Frequently asked
If you want one accountable partner to plan and carry the lift, choose a Contract Lift - we handle the lift plan, method statements, supervision and insurance. If you have your own appointed person and lift plan, take the crane Hired and Managed with our operator. Not sure? Our hire desk will point you the right way.
With 5 axles it needs suitable access and prepared ground for the outriggers and counterweight. We produce a swept-path analysis and a ground-bearing check as part of planning, and can advise on any enabling works before the crane arrives on site.
Yes. The Terex-Demag Explorer 5800 is always supplied with one of our qualified CPCS operators, whether you hire it on a contract lift or hired and managed basis.
The heavy-lift cranes are in demand, so the earlier the better - but our hire desk is open 24/7 and we will always try to help at short notice. Call us to check availability for your dates.
Related cranes
Need the 220 tonner on your project?
Our hire desk is open 24 hours a day, 365 days a year. Tell us the load, the radius and the site - our planners will do the rest.
01322 555 050
