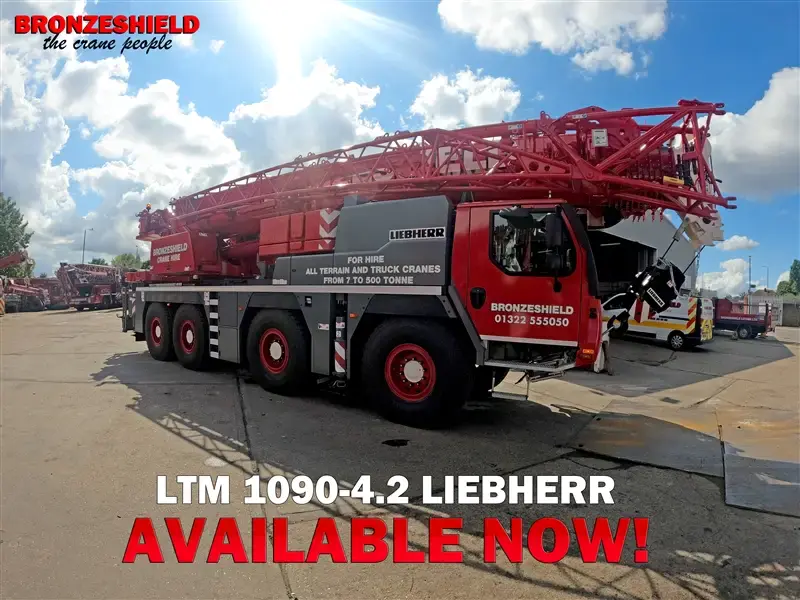

Liebherr LTM 1090-4.2
A 90 tonne all terrain crane with a 60 metre telescopic boom. One of the most frequently specified sizes in the fleet, with enough capacity and reach for the majority of contract lifts without the road movement of a larger machine.
Key figures
Full specification
| Class | All Terrain crane |
|---|---|
| Maximum lifting capacity | 90 t at 3 m radius, 360 degrees on 22.5 t counterweight |
| Main boom | 11.4 m - 60 m, 1 base section and 6 telescopic sections |
| Swing-away jib | 9.5 m - 16 m at 0, 20 or 40 degrees |
| Capacity at 20 m radius | 9.9 t on 22.5 t counterweight |
| Engine | Liebherr 6 cylinder diesel, 330 kW |
| Carrier | 4 axles, all steered, 8 tyres 445/95 R 25 |
| Availability | 24 hours a day, 365 days a year |
Manufacturer configuration figures. Exact capability for your lift - radius, height, ground bearing and counterweight - is confirmed against the load charts by our appointed persons.
Built for the job
- Telescopic boom of 1 base section and 6 telescopic sections, 11.4 m to 60 m
- Double swing-away jib 9.5 m to 16 m, set at 0, 20 or 40 degrees
- Counterweight 8.8 t as standard, 22.5 t with the additional 13.7 t fitted
- Four axles, all steered, on eight 385/95 R 25 tyres
- Liebherr six cylinder diesel, 330 kW
- LICCON2 safe load indicator with test system and hoist limit switch
- Variable Ballast at 3.77m and 4.71m
- VarioBase
Main boom length, to scale. Every lift is planned to the manufacturer load charts by our appointed persons.
Contract lift or hired & managed
Contract Lift
- Full lift planning by our expert appointed persons
- Crane, operator, supervision and slinger provided
- Method statements and risk assessments included
- Insurance for the lift carried by Bronzeshield
- Ideal when you want one accountable partner
Hired & Managed
- The 90 tonner with our qualified operator
- Working under your appointed person and lift plan
- Flexible day-rate hire
- 24 hours a day, 365 days a year availability
- Ideal for experienced contractors with in-house planning
Frequently asked
If you want one accountable partner to plan and carry the lift, choose a Contract Lift - we handle the lift plan, method statements, supervision and insurance. If you have your own appointed person and lift plan, take the crane Hired and Managed with our operator. Not sure? Our hire desk will point you the right way.
With 4 axles it needs suitable access and prepared ground for the outriggers and counterweight. We produce a swept-path analysis and a ground-bearing check as part of planning, and can advise on any enabling works before the crane arrives on site.
Yes. The Liebherr LTM 1090-4.2 is always supplied with one of our qualified CPCS operators, whether you hire it on a contract lift or hired and managed basis.
The heavy-lift cranes are in demand, so the earlier the better - but our hire desk is open 24/7 and we will always try to help at short notice. Call us to check availability for your dates.
