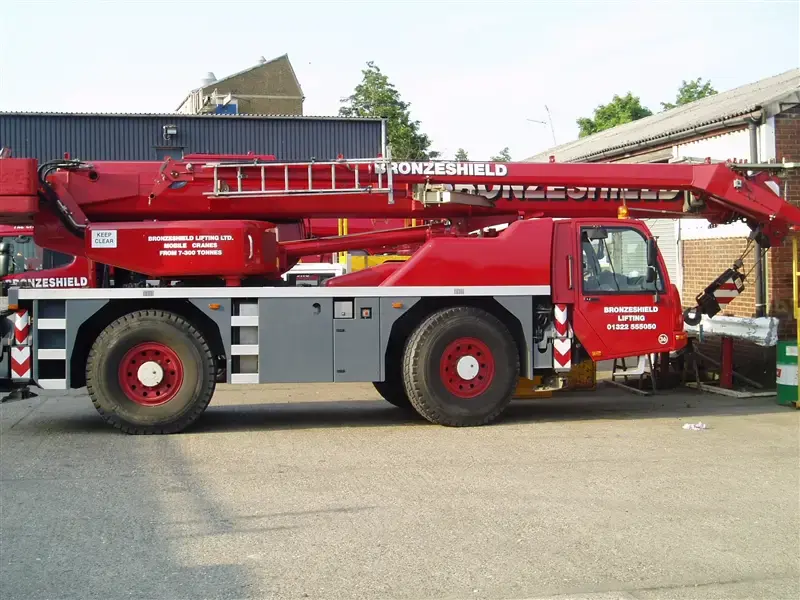

Terex-Demag AC35L
A compact two axle all terrain crane for sites where access is the limiting factor rather than the weight of the load. The main boom extends to 37.4 metres, and with the boom extension fitted the sheave head reaches 47 metres.
Key figures
Full specification
| Class | All Terrain crane |
|---|---|
| Maximum lifting capacity | 40 t |
| Main boom | 37.4 m |
| Maximum tip height | 47 m |
| Carrier | 2 axles |
| Counterweight | 5.5 t |
| Swing-away jib | 8 m, offsettable 0 / 20 / 40 degrees |
| Maximum radius | 33 m |
| Availability | 24 hours a day, 365 days a year |
Manufacturer configuration figures. Exact capability for your lift - radius, height, ground bearing and counterweight - is confirmed against the load charts by our appointed persons.
Built for the job
- 37.4 m telescopic main boom in six sections
- 8 m fly jib, offsettable at 0, 20 or 40 degrees
- 5.5 t counterweight
- Two-axle carrier with all-wheel drive and steering
- Working radius from 3 m to 33 m
- Maximum elevating angle of 80 degrees
Main boom length, to scale. Every lift is planned to the manufacturer load charts by our appointed persons.
Contract lift or hired & managed
Contract Lift
- Full lift planning by our expert appointed persons
- Crane, operator, supervision and slinger provided
- Method statements and risk assessments included
- Insurance for the lift carried by Bronzeshield
- Ideal when you want one accountable partner
Hired & Managed
- The 40 tonner with our qualified operator
- Working under your appointed person and lift plan
- Flexible day-rate hire
- 24 hours a day, 365 days a year availability
- Ideal for experienced contractors with in-house planning
Frequently asked
If you want one accountable partner to plan and carry the lift, choose a Contract Lift - we handle the lift plan, method statements, supervision and insurance. If you have your own appointed person and lift plan, take the crane Hired and Managed with our operator. Not sure? Our hire desk will point you the right way.
With 2 axles it needs suitable access and prepared ground for the outriggers and counterweight. We produce a swept-path analysis and a ground-bearing check as part of planning, and can advise on any enabling works before the crane arrives on site.
Yes. The Terex-Demag AC35L is always supplied with one of our qualified CPCS operators, whether you hire it on a contract lift or hired and managed basis.
The heavy-lift cranes are in demand, so the earlier the better - but our hire desk is open 24/7 and we will always try to help at short notice. Call us to check availability for your dates.
